Tracked platform
The battery-powered tracked platforms, developed and manufactured in Germany, are ideal for transporting loads on Euro pallets, steel beams, wooden beams, windows, and glass panes on construction sites.
The powerful electric drive enables emission-free and quiet operation both indoors and outdoors. With a runtime of up to 8 to 10 hours, the tracked platforms are designed for a full workday.
The tracked platforms are offered in four standard weight classes, ranging from 750 kg to 1500 kg.
Interchangeable crane modules
With the crane attachment, the tracked platform becomes a fully functional crane. It can lift loads of up to 990 kg. The large reach of 4.5 meters allows for versatile work in confined spaces.
Thanks to its wide lifting range, the attachment is also ideal for transporting and positioning beams, stone, or concrete elements. Its modular design allows for assembly and disassembly on the tracked platform within 5 minutes.
Technical data see below
Technical data tracked platform
| Width | 80 cm |
| Lenght | 120 cm |
| Height | 34 cm |
| Climbing ability | 45° |
| Radio control | Acron radio control |
| Color | RAL 3002 |
| Engine | 3 Zylinder Kubota Diesel 25 PS with electric starter and water cooling |
Model variants tracked platform
| RP 750 | Payload 750 kg | Qwn weight 250 kg |
| RP 1000 | Payload 1000 kg | Qwn weight 310 kg |
| RP 1200 | Payload 1200 kg | Qwn weight 310 kg |
| RP 1500 | Payload 1500 kg | Qwn weight 330 kg |
Technical data for crane modules KM 0.5 and KM 1.1
Technical data for the KM 0.5 swap body
| Weight of crane module | ca. 300 kg |
| Maximum charging capacity | 990 kg |
| Wide supports retracted | 810 mm |
| Wide supports extended | 1700 mm |
| Extended support length | 1830 mm |
Technical data for the KM 1.1 swap body
| Weight of crane module | ca. 500 kg |
| Maximum charging capacity | 990 kg |
| Wide supports retracted | 810 mm |
| Wide supports extended | 2800 mm |
| Extended support length | 1830 mm |
Wechselaufbauten modular abnehmbar

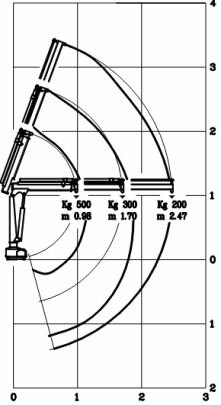

Cranemodul KM 0.5
- 500 kg at 0,98 Meter
- 200 kg at 2,47 Meter
- Hydraulic controllable
- ca. 250 kg own weight
Cranemodul KM 1.1
- 990 kg at 1,1 Meter
- 200 kg at 4,5 Meter
- Hydraulic controllable
- ca. 550 kg own weight
Double-sided glass block module
- includes 4 strap tensioners
- 800 kg load capacity
- 43 kg own weight
Custom bodywork available upon request!
